Modelling Lancashire and Yorkshire wagons and vans

The L&Y operated a number of longer wheelbase wagons and vans, the examples shown were selected as they 'looked different'. The chassis are described in Section A Various types of 12 foot wheelbase chassis produced using the Peco 15 foot wheelbase chassis and long wheelbase brake van chassis. The motor car van was also built with standard L&Y fixed ends as a general service van. I believe examples of all three types shown survived into the early days of British Railways.

The information is presented as a set of pictures, these will take a while to download, to save any one of these right click on the required picture and select 'save picture as'. The pictures can then easily be printed for reference.

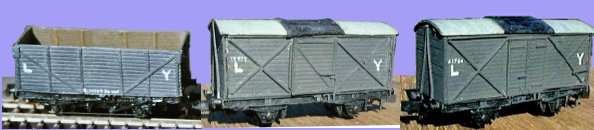

photo of models

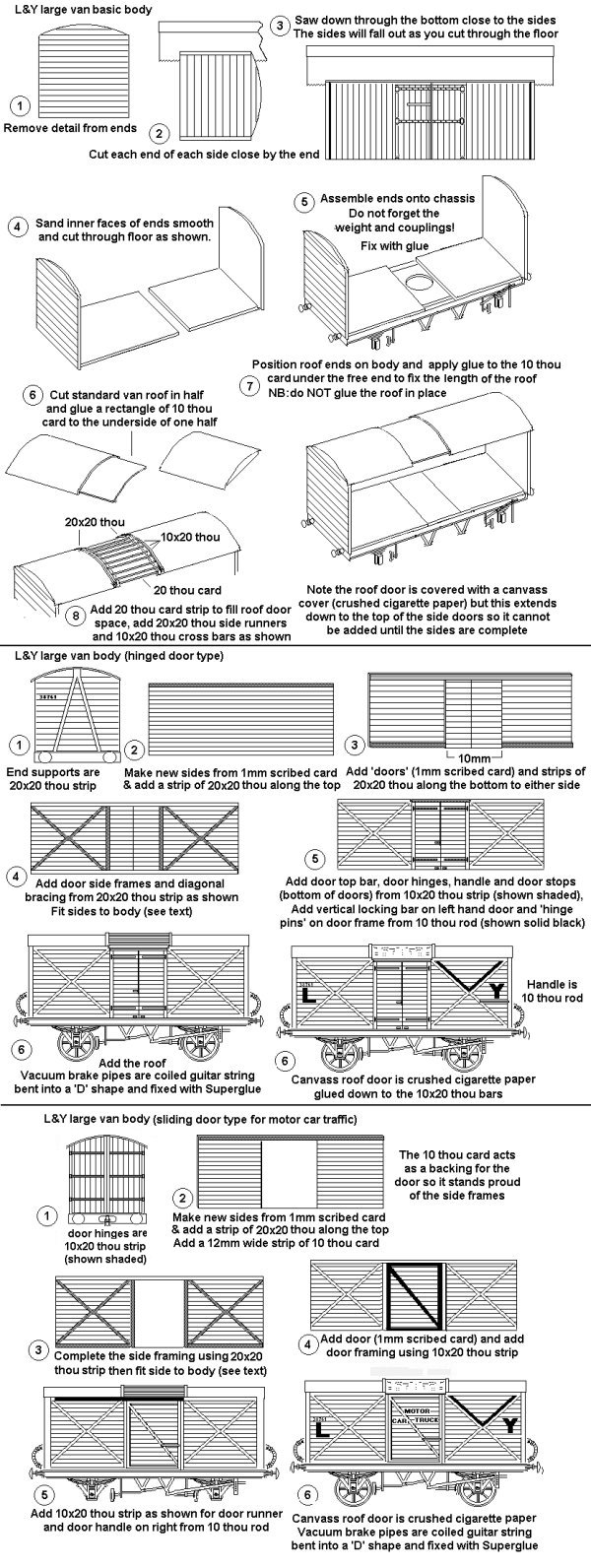

sketch of models

sketch of models
