Goods Yards
A goods yard is a set of sidings where the wagons and vans were loaded
and unloaded. On model railway layouts the goods yard is normally associated
with a passenger station, in larger towns however a separate 'goods station'
was provided, although parcels traffic and mail seems to have been
traditionally handled within or close by the passenger station. The railway
goods yards handled all the traffic carried by the railway which could not be
dealt with at local private sidings, and up to the 1950's that means most of
the goods moved in Britain.
In its most
basic form a goods yard might be a single siding run behind one of the
platforms but it was usual to provide more comprehensive facilities even at a
very small station. Note that simple does not mean small, goods facilities at
even a small country station often required much more land than the passenger
side of the business. For one thing the passenger could walk onto the
platforms, goods yards had to provide access for horse-drawn waggons and carts.

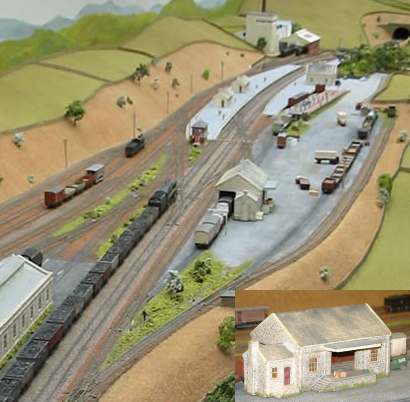

The photo below shows the original goods yard on the late Andy Calvert's Moorcock Junction layout (a fictitious junction station on the Settle and Carlisle), inset bottom left is Andy's goods shed. The period represents the years of 1957-1962.
Fig___ Goods Yard on Moorcock Junction layout
Photo taken at the N Gauge Society 35th anniversary exhibition, reproduced courtesy and copyright
N Gauge Society and Bob Harris, the current owner.
The yard entrance usually had a sign, examples of which are shown below. The LMS sign top left and the BR(MR) sign top right were both taken from photographs of Levenshulme goods depot in Manchester, both were mounted on heavy timber posts to the right of the entrance gate. This yard incorporated a coal yard serving several merchants. The building bottom was originally the passenger station building but served for many years as the goods yard offices, it was located just inside the entrance to the yard, clearly visible from the road, the sign is a BR(WR) enameled metal type.
Fig___ Signs associated with goods yards
The signs in pre BR days usually mentioned the company name, where that company had more than one yard in close proximity there might also be a station name. In the BR era, when all the stations were operated by BR, the station name was usually mentioned (there might be several goods stations associated with a town), however I am told not all BR signs were station specific, some were generic, as on the BR Eastern Region sign shown below. These would presumably be supplied where the entrance to the goods yard was directly from the passenger station forecourt area, where the full station name would of course be displayed.
Fig___ BR goods yard sign
As well as the large signs indicating the entrance to the yard various signs were seen inside the yard itself, the examples shown below are in the various BR regional colours but similar signs would have been seen in pre-nationalisation yards.
Fig___ BR era signs from within goods yards
Although there might be several general
goods freight trains passing along a line during the day generally only one
would be scheduled to spend any time shunting the average station goods yard.
This shunting might take upwards of an hour or more as individual wagons were
placed in the most convenient locations for loading or unloading. When shunting
was in progress it was normal to clear the area of traders vehicles. Shunting
was done at fixed times of day but on a model of a busy town goods station the
best compromise might be to have a siding or two containing wagons and vans
with their doors open surrounded by road wagons, the remainder of the sidings
being clear for shunting.
Country
lines often had only five passenger trains each way and perhaps two goods
services per day. I think it was C. J. Freezer who first mentioned in print the
advantages of modelling a town location for a model railway; the land was more
expensive, so the facilities were more cramped, and the services tended to be
rather more intensive than the country branch, all of which lends itself rather
well to modelling. In towns and cities there was also considerable to-ing and
fro-ing between the yards of the various railway companies as well as the
trains coming and going on the main and branch lines.
Basic Yard Facilities
A typical goods yard would have several typical features, almost all would have a raised bank allowing sack trucks to access wagons (where this was not available one solution was to drop the wagon door onto a large barrel and lay a plank up against this, however this was really only suitable for wheelbarrows). There was almost always a lockable shed, a great deal of the goods in transit was 'sundries' or less than a wagon load, placed in a wagon or van with other goods head to the station. This material had to be unloaded from the wagon and either delivered by the railway carters or set aside to be collected by the consignee. The goods shed served to allow this work to be done under cover and usually contained a lockable secure store for more valuable goods awaiting dispatch by rail or collection
by a local consignee. In many yards the raised loading bank was entirely confined to the inside of the shed.
Goods sheds were
in the main rather large buildings, often larger than the main booking hall at
the associated passenger station. Most sheds were single storey (albeit as tall as a two storey house) but a few had warehousing on
upper floors.
The photo below shows the goods shed on the late Andy Calvert's Moorcock Junction layout, with the two road engine shed in the background.
Fig___ New Goods Shed on Moorcock Junction layout
Photo taken at the N Gauge Society 40th anniversary exhibition, reproduced courtesy and copyright
N Gauge Society and Bob Harris, the current owner.
At large goods stations the goods shed might be a very large building
with several tracks passing inside. These large depots were often multi-storey
affairs with road access at ground level and the railway entering on an upper
floor. Where this was done it was not uncommon to have a wagon lift to move
loaded and empty wagons between the different levels, one example in Birmingham
had the lift in the open and I understand that the large goods depot close by
the former Central Station in Manchester had such lifts inside the building.
Smaller goods sheds of the Ratio type, in
which a single railway siding passes through the shed with doors at either end,
were common but in some yards (especially on branch lines) the siding passed
along an outside wall with just an awning above the door to the shed. Railway
companies often had standard designs of goods shed but odd non-standard
examples were built on many lines. Peco offer a neat little wooden shed
representing about the minimum size for this kind of building. The Peco model
is designed to stand on its own but it can be easily adapted to sit on a
loading bank.
The Peco shed lacks any foot access as supplied, this is easily rectified by adding an extension below the road-side door with a flight of steps at one end (the last time I used this model I added a ramp on the opposite end of the extension as well). The Ratio goods shed has such an arrangement already.

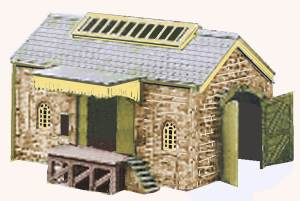

Fig___ Ratio N Gauge goods shed
Almost all goods yards had a hand powered crane of some
description, the goods sheds with the siding passing through the building often
had a crane or two inside mounted on the heavy timber supports (the Ratio yard crane serves well if the interior is to be visible), the example shown below is typical of the kind used inside smaller sheds, although this example was in a rail-canal transit shed.

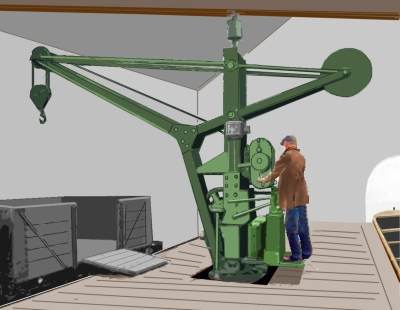

Fig___ Typical crane inside a shed

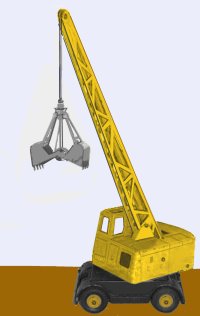

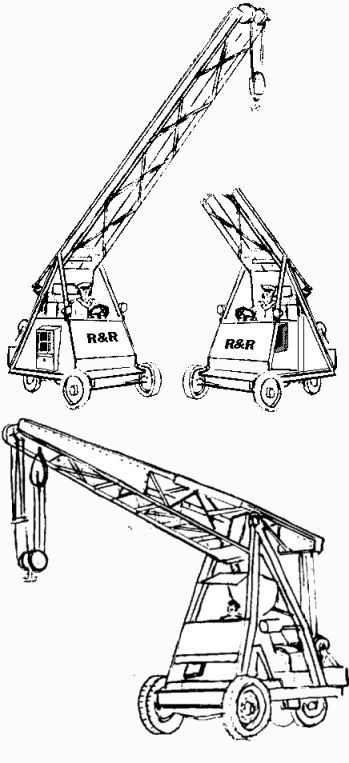

For larger goods such as railway containers and bulky loads such as timber a separate crane was usually provided alongside a siding in the open. These external cranes were often standard railway company designs but there were also examples of non standard cranes and even quite large 'scotch derrick' type cranes, the latter being particularly associated with heavier types of traffic (see also Wagon Loads & Materials Handling - Materials Handling - Hoists and Cranes).
In practice quite a lot of
traffic was unloaded from railway wagons directly onto road vehicles and if you
have a two or more sidings out in the open for this remember to leave enough
space between them for a horse drawn cart to turn round. It is not practical to
back up a horse drawn vehicle, the harness is not designed for it and the horse
would not appreciate it. Where you see recessed bays in goods sheds for carts
it would be normal practice for the horse to be unhitched and the wagon to be
shifted by hand into the bay. At smaller stations single tracks would fan out
but at busy yards the sidings were usually laid in pairs, allowing road
vehicles access to two sets of wagons.

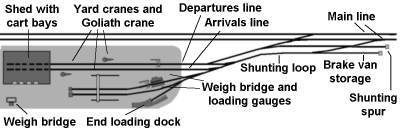

In the more confined in-town yards (town land was expensive) the distance between the lines might not allow a cart to be turned, instead the track was inset so, after loading, the cart (or lorry) could proceed to the end of the rake, accross the line, and return up the other side. In N the minimum distance between the
outside edges of the sleepers on tracks in the open needs to be about one and a
quarter inches (32mm).
Cattle were handled at a separate raised loading bank
called a 'cattle dock'. These were usually equipped with pens of some kind, the
extent of the facilities would depend on the amount of cattle traffic likely to
be handled. Some country stations, where land was cheap, had a small holding field close by the cattle dock. The floor of the cattle pens would be flagged and would usually have a drain or drains with associated gutters cut into the surface. Cattle need regular watering so a stone or metal water trough was (I believe) always provided.

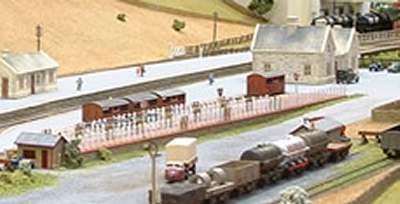

The photo below shows the large cattle dock on the late Andy Calvert's Moorcock Junction layout.
Fig___ Cattle pens on Moorcock Junction layout
Photo taken at the N Gauge Society 35thth anniversary exhibition, reproduced courtesy and copyright
N Gauge Society and Bob Harris, the current owner of the layout.
Ratio offer a very neat kit of a standard GWR type cattle dock with
two pens, this can be extended using additional kits if required but most
stations had only one or two pens. A more common type consisted of a simple wooden fence with pairs of gates, note that you cannot (or at least should not) use standard three rail fencing, pigs are small and sheep can jump, so you need four or preferably five bar fencing. This is not available commercially so you have to make it from 20x30 thou strip, single strips for the horizontals with pairs of verticals and the gaps filled either with short off cuts or Milliput.
Road
vehicles and farm machinery might be handed at the loading bank if they could
be manoeuvred over the side of a drop-sided wagon. If no loading bank was
available, they could also be lifted on and off using a crane. It was fairly
common practice to provide an 'end loading dock' to allow over-the-buffers
loading of flat wagons and machinery wagons. The end loading dock was sometimes
combined with the cattle dock and where this was done the end loading part
would be slightly higher than the main cattle dock. On these combined loading
banks it was usual to have a short section clear of the pens for side loading
of wagons.

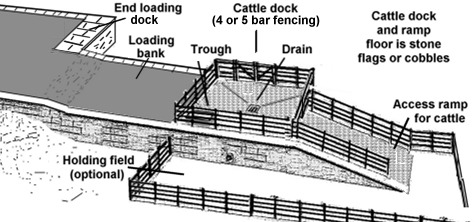

Fig___ Loading bank with cattle dock
To handle private carriages and
later motor cars passenger stations sometimes had an end loading dock built
behind one of the platforms, these were referred to as a 'carriage shoot'.
Carriage shoots consisted of a short length of track running into a bay in the
platform or along one side to a dead end and they also provided a handy
unloading point for van loads of parcels. My local town station at Altrincham
was (and remains) part terminus and part through station. The terminus side
actually had two sidings feeding the end loading 'carriage shoot'. These were
quite long but this was because they accessed the main station approach road
which was at the far end of the platforms.
Some degree of yard lighting would be provided, at the bottom end of the scale this
might be a couple of bracket mounted oil or gas lamps fitted on the goods shed, or a single
lamp post on a loading bank. The larger the yard the more lights would be
provided, most would be fairly tall types, although where sidings were provided
for road traffic access the lamps used were often about the size of street
lamps and in marshalling yards lamps on nine foot tall posts were often provided at the throat of the yard to assist staff reading waybills and the like. There are several models of suitable lamps (some working) available. The example shown below left was still in use in 2007 and the remains of similar but rather shorter lamps with inclined ladders (shown below centre) were still in place at a former goods marshalling yard. The loop with suspended gas light seems to have been a fairly standard post mounted design across the country, by the 1930s these were often fitted with electric lights rather than gas. Street type lamps similar to the Ratio N Gauge platform lamp shown below right were seen on loading banks and cattle docks, but were less common set amongst the tracks in the yard.

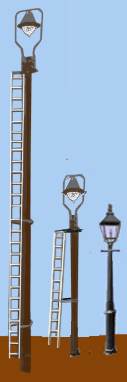

Fig___ Typical yard lighting
In the larger marshalling and goods yards electric flood lighting using tall towers with batteries of lights were in use by the early 1950s although I am not sure when they first appeared. An etched brass kit of one of these tall lighting towers is available from (I believe) Taylor Plastic Models.
One point that
seems to be forgotten these days is the provision of 'fire buckets'. These were
plain metal buckets, painted red, often with the word FIRE printed on them in
white or black, filled with water or sand they were seen in almost all outside
locations up to the 1970's. Most railway platforms had a set of the these
buckets and they would be seen in factories, store yards, schools, hospitals
and especially near anything flammable. They were usually hanging in groups of
three from a red painted wooden boards screwed to a wall or from a similar
board supported on two wooden posts about five foot high.
Stables for
horses, used for hauling the railway delivery carts and sometimes for shunting,
would be seen on or close by even quite a small goods yard. These were usually
well built structures, commonly in a similar architectural style to the goods
shed. At my local station (Hale on the Manchester to Chester line) the stables
were just outside the yard entrance, built onto the end of an adjacent row of
terraced houses.
The local coal merchant would often rent some space in the
station goods yard, often with a dedicated siding. The alternative, which was
seen occasionally, was for the merchant to collect the coal in bulk using a
road cart or waggon and haul this to his own premises. The facilities provided
for coal merchants are discussed in detail in the section on Railway Company
Goods Facilities - Coal.
The local coal merchant
with facilities in the yard might also stable his horses in the immediate
vicinity of his coal bins, this was unusual but makes for a nice model. One
option here, in the country at least, would be to have a couple of old grounded
van bodies being used as the stables.
Local
traders dealing in materials such as agricultural fertiliser might have a shed
of some kind in the yard, these might be anything from a large warehouse type
building to a simple wooden hut. Old railway van bodies were quite often sold
for use as sheds (mostly by farmers rather than in the goods yard) and the Peco
ten foot wheelbase refrigerator van makes a good basis for this. For layouts
set in the 1920's or 1930's this should be backdated with external timber
framing and possibly with new sides if you feel up to it. Some of the old
wooden outside framed van bodies remained in use into the 1960's. Grounded van
bodies and small 'garage sized' sheds were usually set back from the railway
but some sheds were positioned beside a siding and raised to platform height to
allow easy transfer of materials to and from rail wagons and road vehicles.
The example shown below was operated by a seed and feed merchant, the comany name and town in the upper part of the ends, on the lower part of the ends it said 'Agents for Bibby Oil Cakes, Linseed Cakes, Cotton Cakes etc'. The prototype was light colour (possibly 'light stone') with dark writing. The base is brick with corrugated iron walls and roof on a timber framework.
Fig ___ Private rail served warehouse
Ratio offer a concrete shed raised up on
piles in their OO range of kits. This is a British Railways Southern Region
standard design, made up of pre-cast modules which could be assembled in any
number of ways. These sheds were seen everywhere on the system from the later
1950's from Cornwall to Scotland and were often leased to private traders or
major shippers (notably suppliers of animal feeds) as small warehouses. Fertiliser distributors seem to have made
frequent use of these sheds in country areas and this became very common as the
railways ended their less than wagon load services. The picture in the Ratio
catalogue can be used as a general guide to appearance and practice and the
shed can be built up from a box of 40 thou plastic card with 1mm wide strips of
10 thou representing the vertical supports. The vertically planked wooden doors
can be a simple rectangle of 1mm scribed card. These buildings, being modular,
could be built to any required size and I believe the Ration model as supplied
represents about the smallest that was actually used. Wooden bodied sheds of similar dimensions with a corrugated iron or asbestos roof were also used.
The wooden bodies of old railway vans and even old four
wheeled coach bodies were sometimes used as 'mess huts' or store rooms in
railway yards. The Graham Farish four wheeler coach body can be used but if you
cannot find one of these you can cut down a Graham Farish 'suburban' coach to
suit quite easily.
From the 1960's the old grounded van and coach bodies
steadily disappeared and after about 1970 the standard 'portacabin' became the
norm. There are now several suitable models on the market, these are discussed
in more detail in Volume 2.
Larger Town Goods Facilities
The railways divided goods services into four basic categories. Small items were classed as 'sundries' and the high value 'parcels' variety were often dealt with at the passenger platforms. Really big items required cranes and the like, in towns these would be dealt with in a 'heavy goods' yard (usually an area within the main goods yard). People could send their goods 'station to station' making their own arrangements for delivery and collection. The smaller items came under sundries traffic but quite a lot of this traffic provided full wagon loads and this traffic would be handled in sidings in the open where the customers vehicles could pull up alongside the siding. This siding would also be used by railway company vehicles handling full wagon load traffic.
The railways also handled a lot of the collection and delivery work themselves and in towns they provided large goods sheds for this traffic. Typically such a C & D depot would require a minimum of two tracks entering the building, one for goods arriving the other for outward traffic. Loading bays would be provided
for road vehicles, and there might also be road access to the interior of the
building to enable the transfer of things like sacks of sugar to take place
under cover. The entrances for road vehicles, were generally much higher on
older buildings. Horse drawn vans were often quite tall and the driver sat on
top, also open horse drawn wagons could be loaded up rather high.
Fig___ Minimal large town goods yard
Note - In this example coal traffic, and possibly cattle, are dealt with in separate dedicated yards. Coal would always have dedicated sidings, the cattle pens could be accommodated on the end loading dock but the loading bank is provided here for horse traffic.
An arriving goods train would be brought from the nearest marshaling yard, usually by a small tank engine, and deposited in the arrivals side. The individual wagons would then be unloaded and the goods transferred to the waiting road vehicles for delivery. Often the required road trailer or cart was not on hand so piles of goods awaiting collection were a feature of this side.
Once the railway stock was empty it would be shunted out of the building and back in to the 'outgoing' side, where there would already be piles of goods waiting to be loaded. On this side there were usually numbers indicating where on the loading platform wagons for specific locations would be parked.
In larger town goods yards the goods shed often resembled a passenger
station, light wooden
bridges were provided to enable the staff to walk or manoeuvre trolleys from
one platform to the next without going all the way to the end and back up the
other side.
In larger
goods stations there might be separate sheds for arriving, departing and
transhipment.
Transhipment relates to the unpacking of goods from wagons and
re-sorting them into other wagons for onward shipment. This was often required as a small consignment going from London to Leith (near Edinburgh) would be unlikely to form part of a full wagon load for that destination. It would be placed in a wagon or van heading North and then transhipped at a goods depot closer to its destination, where a full wagon load of goods would me much more likely. Such a shed could have as few as three platforms with two double-track sidings running between them. The tracks to either side of the central platform would handle the transhipment from one wagon to another whilst the outer platforms would handle the local traffic for collection and delivery.
In larger sheds there might be three tracks between the arrivals platforms, the centre track being accessed via a wagon traverser (a section of track that could slide sideways from track to track). Powered capstans were used to shift the stock along the sidings and when the wagons and vans were unloaded they were moved to the end of the siding where the traverser moved them to the centre track. Now and then a shunting engine would collect the empties from this track without disrupting the work on the platforms.
The photo below shows the transhipment shed, dating back to the 1830s or 40s I believe, at the former goods yard on Liverpool Road in Manchester, now part of the Manchester Museum of Science and Industry. The gantry crane was used for goods arriving at and departing from Manchester itself. This yard was part of the Manchester terminus of the Liverpool and Manchester railway and most of the museum is accommodated on the site, indicating the scale of the goods operation even in the 1830s.
Fig___ Transhipment Shed and Gantry Crane in Manchester
Goods yards were busy places and most of the bays in the covered goods shed would usually be occupied. Empty carts and trailers would be seen throughout the yard, either close by the tracks ready for work or parked out of the way. The railway owned horses usually had more than one cart provided so the horse could be dealing with a collection or delivery with one whilst the other was waiting in the bay. When the mechanical horses were introduced for this work they were typically supplied with two trailers.
Some of the bays at the covered depot would be reserved for customer vehicles, allowing the use of the cranes inside the building for loading or unloading awkward items. For example McVittie & Price biscuits were shipped (in the mid 1930's) in rectangular wooden containers which were placed in open wagons and sheeted over in transit. These were too big for men to handle but the large and slow moving heavy gantry cranes would be inappropriate. Where a crane was provided by a track in the open it could be used but it was probably easier to drop it off at the shed where it could wait under cover for the wagon to become available for loading.
The town yard shown above required a fair bit of space, the loop has to be long enough to take the longest train that will use the yard for instance, however the detailing one can apply to a yard of this type make it (arguably) of greater interest than a passenger station. My own feeling on this is that the entrance to a large passenger station, covered by an overall roof, makes a pretty good entrance to a fiddle yard. This allows fingers to get in to uncouple engines at the head of a passenger rake inside the fiddle yard but still alows the movement of carriages from arrivals platforms to departure platforms as on the prototype. With a yard of the type shown above in the front, the main line running into the station in the middle and carriage sidings and an engine depot to the rear, I believe the overall operation of the station more closely resembles that of the prototype. This was not my idea, I first saw it in Ken Payne's book 'One Man's Railways' (published by Peco, well worth a read). The rough sketch below shows the general arrangement, this is suitable for a continuous run layout. There is a single slip allowing locos from the goods yard to access the engne shed lines from the departure road. The empty space at the front right could be occupied by, for example, a timber yard fed by a kick-back siding from the yard itself or by say a gas works fed from the main line to the right, however remember to leave hand access to the shunting loop as automatic uncouplers are never 100 percent reliable.

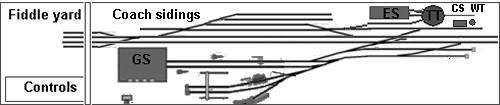

Fig___ Large town goods yard and carriage sidings
The larger railway companies
sometimes built a rail-served goods depot and warehouse in towns where they had
no lines themselves. The company owning the goods station would have 'running powers' allowing their engines to access the yard and received the fees for
handling at their depot and possibly local collection and delivery, leaving only the line fees for the company
operating the line to the town. This is handy as 'running powers' allow engines from other adjacent companies to appear on a layout. There were even some 'goods stations' which had
no rail connection at all, a restored Great Western Railway goods depot exists
in Liverpool close by the docks. There is no rail connection to the depot, the
goods were transported, initially by ferry and later by GWR road vehicles via the Mersey Tunnel to their northern goods station at
Birkenhead.
At Stockport south of
Manchester there were actually two large goods stations, both on the LNWR line
to Crewe and operated by that company. One was located behind the passenger
station whilst the other was separated from the passenger station by a massive
viaduct over the Mersey valley. The remote yard was mainly to serve a sundries
depot and goods warehouse operated by the company but it did possess a couple
of cranes and an open yard area for loading road vehicles. The warehouse
building is still in place and is still used as a storage warehouse. These
large multi-storey brick 'goods warehouses', offering storage facilities, would
normally only be seen in large towns or at more important junctions however.
The actual movement of goods inside the
sundries depot was very labour intensive. Each wagon had to be loaded and
unloaded by hand and the goods were generally moved about by porters with
barrows and 'sack trucks. In the later 1950's as part of their investment
program British Railways installed heavy 'slatted' conveyor belts along the
platforms in the sundries depots to move the goods but these improved
facilities were doomed to a short life as the business was effectively ended by
the 1968 Transport Act (the railways own parcels business carried on for
another twelve years, finally closing down in 1981).
Loading the wagons required some skill, for one thing the load had to be secure so it would not be thrown about in transit, for another the load had to be viewed as a whole, for example it would be inadvisable to load an anvil going to a blacksmith on top of boxes of fancy crockery going to a shop in the same town.
Before the 1930's large numbers of live
cattle came into towns to be butchered. This was done by the butchers
themselves and most towns have an area called the `shambles' where the butchery
was carried out. This entailed extensive cattle docks, usually separated from
other railway facilities and whole trains of cattle wagons were seen until the
1970's, although the traffic had been dying away since the early 1930's. This
decline was because the trains themselves offered a quick way to move freshly
killed meat into the towns, and this was cheaper and more convenient than
trying to move large numbers of live animals through the streets. Ventilated
meat vans were used for this traffic but from the mid 1930's containers
dominated this trade. The GWR used some cattle wagons freed by this process to
carry beer (marked ALE WAGON) or converted them to ventilated fruit vans. This
latter move was so successful that the LNER and the GWR actually built such
fruit vans as new in the late 30's.
Suburban and Country Station Goods Facilities
Out in the country the same basic handling facilities would be required, however the land was cheaper so the yards tended to be quite large, particularly where the station was close by an industrial area. The example shown is (very loosely) based on Airdrie Goods, a former one-platform terminus on a single track ex Caledonian line. On the prototype there were two more sidings between the loading bank and goods shed, these were used for coal traffic, there was also a second spur feeding another end loading bay at the end of the loading bank. No engine facilities were provided at this site and no shunting engine appears to have been stationed there.

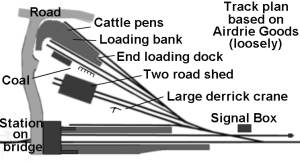

Fig___ Rural goods yard close by an industrial area
Further out into the country the same basic facilities would be required albeit on a much smaller scale. A raised platform or
'loading bank' was provided in almost every yard to ease the loading and
unloading of railway wagons. Wagons or vans run into this siding might still be
emptied directly into a road vehicle pulled up on the other side of the tracks.
A 'loading gauge' (as discussed in the section on
Track - Gauge & Loading Gauge) would usually be provided to check loaded
wagons before they were allowed to travel.
Almost all yards would boast a goods shed,
with railway access on one side and often a road vehicle loading bay on the
opposite side. In many cases the loading bank was entirely confined within the
goods shed but some stations had an outside platform as well, either extending beyond the shed or entirely separate from it. In real life stations were as often as not built on a very
slight curve, but for model purposes keep curves as gentle as possible where
any form of automatic uncoupling will be used.

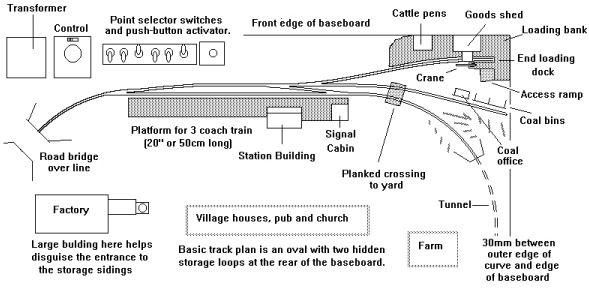

Fig ___ Very Small Goods Yard
The layout in Fig ___ is one I included in a very small
portable layout built some years ago. The radius of the curve at either side of
the main line at the front of the layout is only twelve inches. I used a
right-handed twelve inch radius point (I seem to remember this was of American
manufacture) on the left to increase the size of the run-round loop. The lack
of space in the goods yard area restricted the number of vehicles the yard
could handle at any one time but most kinds of traffic could be justified. The
yard includes all the above mentioned features; access in the open for loading
directly on to road vehicles, a raised loading bank with a crane, a small goods
shed, cattle pens and an end-loading dock. There is also a separate siding for
the local coal merchant. The curves at the rear were nine inch radius Peco 'set
track' with two points at either end to provide the storage loops. The
baseboard was about four foot by two foot six inches, it had a thin plywood top
on a one inch by one inch timber 'ladder' frame (giving sufficient depth for
the point motors). The profile boards at the front and sides and the false
back-scene in front of the storage loops were cut from hardboard. There was a
hardboard bottom on the underside of the baseboard for rigidity, held with
screws so it could be removed for repairs to the wiring. Strips of felt were
added to the hardboard sheet using double-sided tape so it would not scratch
the dining room table. The goods shed started life as a Peco kit, I replaced
the walls with 'stone' embossed plastic card, reduced in height to sit on the
loading bank and used only the roof, window and front valence from the kit.
Goods Handling Equipment
Mechanisation was
rather more common in the larger yards. Steam powered cranes might be seen and
I have found (in an old (1930's) school book) a picture of a portable conveyor
belt, apparently electrically powered, being used to lift sacks into open
wagons in a goods yard. The picture would appear to date from the 1920's as the
wagons are all in `pre-grouping' liveries. Something similar is the `farm
elevator' available in `N' from the Fleetline range of cast whitemetal items
but this is a little wider than the example in the photograph.

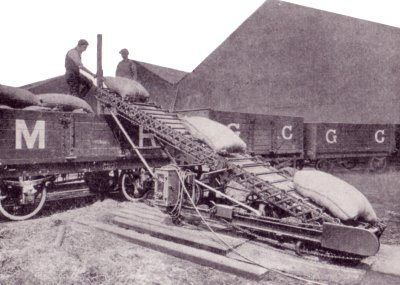

Fig___
Portable conveyor used in a goods yard
The petrol lorry was starting to appear in
railway company service by the 1920's but horse drawn transport remained in
service at many stations into the 1950's. One distinctive design was the 'Cob'
(named after a type of working horse) first built in 1930 by Karrier in
Huddersfield. This was a tiny three wheeled truck designed to pull horse drawn
wagons, later versions included the option for a purpose built semi-trailer. It
had a rubber tyred front wheel but the rear wheels were simple steel types with
no rubber tyre. These were slow machines by modern standards but they had a
very small turning circle, they were reliable and economical and they could
pull substantial loads about the place. The Cob proved popular with railway
companies and industries such as gas works. As far as I am aware the Cob was
only used inside the goods yards, not on the roads, but I understand they
remained in use into the 1960's.

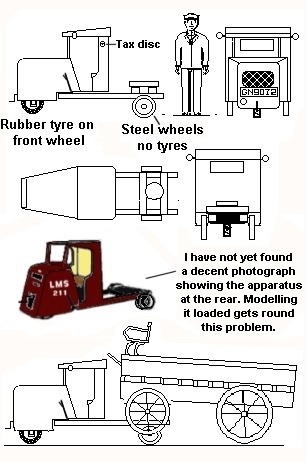

Fig___
Karrier Cob
The advantages of
a three wheeler delivery tractor saw a range of such machines being developed,
some of which remained in use into the early 1970's. More information on the
many three wheeled trucks used by the railways will be found in the section on
Railway Company Goods Facilities - Railway Owned Road Vehicles
Fixed crane design is discussed more fully in
the section on Wagon Loads & Materials Handling - Materials Handling - Hoists and Cranes but the railway companies also used
self propelled mobile cranes in goods yards. These small cranes had
lifting capacities up to about three tons and could lift large or heavy loads
such as containers on or off the wagons and move them about the yard. I have
seen photographs of these cranes as early as the mid 1930's. A model could be
produced from plasticard and strip.
The
most easily modelled design had two 'A' frames with the simple cab and engine
between them although the jib would be rather fragile in this scale. The jib
consists of two lengths of `H' section, a maximum of 1mm deep, with cross
trussing from paper or microstrip glued between them. The pulley wheels at
either end and the wire drum can be cut from the end of a small diameter metal
bolt. Five amp fuse wire, or a single strand from multi-core layout wire, would
serve for the lifting rope.
Wheels for the crane can be made
from short lengths sliced from some electrical wire sleeving and packed with
Milliput. An alternative for the crane would be to use the Knightwing fork lift
truck as a basis, adding simple A frames and jib as above. This basic design
was used for cranes of various sizes, the lower illustration shows a heavier
type, the job for this can be made up using the Ratio OO scale 'LNER Signals
Set' which includes a number of lattice masts that serve well in N for crane
jibs.
Fig ___ Small mobile cranes
After
the war BR used a number of ex-military petrol powered cranes mounted on the
rear of short wheelbase lorries, these were commonly used to lift the
pre-speedfreight old style containers on and off Conflat wagons. The Airfix
'recovery set' includes one of these cranes suitable for use on an OO layout.
A common design seen on British Railways after the mid 1950's was a small four wheeled crane with a long lattice jib fitted to a rotating upper body. These were used for a wide range of work including container handling and could be fitted with a grab to handle coal and coke. The same basic design, fitted with a shorter jib, was used by the Permanent Way staff although these tended to have double wheels to cope with driving about on the ballast and rough ground beside the line.
Fig ___ Small Coles mobile crane as used by BR
Some larger goods yards (and some
industrial locations) were equipped with a gantry crane, examples of these are
available from the Continental firms and Knightwing the new British whitemetal
model range includes such an item. Some care is required in selecting which
type is most suited to ones period. One of the continental models is of a
rather modern tubular metal design, only suitable for use in layouts set after
the late 1960's and most are of the fixed type whereas a more common
arrangement in Britain is to have a mobile system. Mobile types were of two
kinds either with the supporting end frames mounted on rails set into the
ground or a raised gantry on either side of a set of sidings along which the
crane travels.
On occasion there might be a flow
of unusually heavy traffic to a smaller goods yard, for example building materials being shipped for a
local construction job. In such a case it was not unusual to provide an
additional rail crane (a crane mounted on a railway wagon), usually hand
operated. It was not uncommon for this crane to be placed on a specially laid
section of track, the siding would be broken and the end slewed off to one
side. A short length of track would be bolted on (perhaps 2 inches in N scale)
and the crane would be parked on this new section. The original track would
then be dragged back into line and reconnected to the rest of the siding. The
wagons would run into the siding and the crane could be used to transfer the
materials to wagons or lorries.
A steam
crane might be sent if the traffic included quantities of heavy materials, but
this was much less likely in a country yard and these were rather heavy and
expensive for parking on temporary lengths of track.
Shunters Trucks
Something not often seen modelled, but a part of any
large goods yard or marshaling yard up to the 1970's on ex Great Western or LMS lines and in many
industrial private railway systems, is the `shunters truck'. This was a small
open flat wagon generally fitted with running boards as seen on brake vans and
grab handles for the shunters to ride on. Mounted on this there was often a box
to hold tools, usually with a simple metal rack on top to carry the poles. This
box was definitely used on the GWR types, which were very standardised, the LMS
standard design had no box but yard staff might well add one for their
convenience.
A GWR version is available as
a kit from P. D. Marsh, adapted to fit the Peco 10 foot wheelbase brake van
chassis. Technically this should have a 7 ft. wheel base, which requires some
butchery. I built one by cutting down a Peco brake van chassis and fitting a
cut-down single bolster wagon body on which I added the tool box from a block
of Milliput and handrails from fine wire. The LMS type could be made up using a
P. D. Marsh one plank open wagon kit on a Peco ten foot brake van chassis with
handrails from fine wire. You could make one by carving the unwanted swivel and
floor detail from a Peco single plank bolster wagon body but again you would
need the brake van chassis.
Fig ___ Home made GWR shunters truck
Changing to metal tyred wheels offers the possibility
of taking extra electrical pick-ups to be linked permanently to a short wheel
base shunting locomotive. I used mine with a Pannier 'dock tank' kit, built using a Minitrix chassis. Some thing similar was used on the real railway, where `track circuiting' is used the small class 03
diesel locos on BR often have such a wagon permanently attached to help ensure
the circuit is completed as the train passes over the section. On the western
region old GWR shunters trucks were used, on Eastern Region they used what
appear to be redundant Conflat wagons.
The Post Beeching Era & Facilities for Air Braked
Services
In the mid 1960's the
less-than-wagonload 'sundries' depots were cut back to less than a hundred in
the whole country. Before this time most towns had several sundries depots,
originally built by the competing pre-grouping railways in the late 19th and
early 20th century. In 1968 British Railways were finally released from their
common carriers obligation and the loss making sundries business was handed
over to National Freight Carriers, the nationalised road haulage service. This
brought the end to the last of the town and country goods yards although goods
shipped by the wagon load continued to operate in a limited way.
Where the shipper or recipient did not have
a direct rail link these full wagon loads could be handled at a single siding
and in yards up and down the country odd sidings were retained for this
traffic. In the mid 1970's there was a move to recapture the wagon load traffic
and this was backed by investment in new high speed air braked rolling stock.
These wagon load services operated in the main between private sidings but
there were a number of public terminals established to provide road collection
and delivery. The railway owned many of the terminals but an equal number were
operated by distribution organisations such as Isis Link.
The facilities offered at these terminals varied depending on
the nature of the traffic to be handled, a single siding which received the
occasional van load of fertilisers would have only a concrete area for the
lorry to pull up alongside or for a fork lift to operate. In terminals where
containers were handled, these could be ISO types (although this was and is
rare) or the special containers used for coal and potash, the usual container
handling equipment is a large fork-lift type vehicle, either with hefty forks
or with a top-attaching lifting frame. Some terminals offered covered
warehousing but this was not common, they were mainly geared toward
transhipment from rail to road for onward delivery. Examples of terminals from
the Speedlink era have been sketched in Fig ___ in the section on Freight
Operations - Air Braked Network, Speedlink and Enterprise wagon load services.
Some traffic required special handling, a
good example being the bulk grain being delivered to yards by the Grainflow
service. Some of the grain was loaded at or delivered to purpose built grain
terminals and these are considered in Volume 2, some however was delivered to a
simple open yard where it was transferred to road vehicles for final delivery.
The hopper wagons discharge through the bottom but under track bays for lorries
would cost too much to build. The answer was to build a small pit under the
track into which an portable electrical auger can be positioned to transfer the
grain into the lorries (see Railway Freight Operations - Grain and Beer Traffic)
.
Following privatisation the
land and other property owned by the British Railways Board was divided between
Railtrack and a new organisation called Rail Property Limited. Basically
Railtrack got anything which was in actual use or which the Government felt
might be used and all the rest went to RPL to be sold off. In the event
aggressive marketing by EWS has seen an increase in smaller volume freight
flows and between 1994 and 1998 over seventy of the mothballed freight sites
were reopened for business. Railtrack has had to buy several sites back from
RPL, in at least one instance competing with a bid from a major supermarket
chain, and eight of these sites are being redeveloped for freight. As the
nature of freight traffic flows has changed Railtrack have also been looking
for new sites with no previous railway connection. They see a need for several
terminals in the South East and have already purchased land for freight
operations in the Birmingham area and along the East Coast Main Line.
By 1998 there were about a thousand freight
terminals of all kinds operated by a number of rail and haulage companies with
a further seven hundred mothballed and another dozen or so new sites being
developed.
^
Go to top of page
International Good Guys ~ Making the world a
better place since 1971 ~ Site maintained by
All material Copyright © Mike
Smith 2003 unless otherwise credited
