KITS
When the first version of this book was written in the mid 1980's there
were few ready to run goods vehicles available and even fewer kits. The steady
increase in interest in N Gauge and 2mm Scale modelling over the last ten years
has seen a small growth in the former and a considerable growth in the latter.
Many kits are produced by small scale enterprises and they tend to come
an go, however for the sake of completeness I have included details of all the
kits on offer that I could find.
Thanks are due to Alan Cox who provided a number of corrections to the entries, bringing them up to date. Any errors are mine, some of these entries do date back a long way and some models may have been re-mastered since I bought examples (anything up to 25 years ago now).
Small runs are often commissioned by an individual to fill their own needs, typically they will advertise their intentions in the modelling press so that others may place orders for the models. By selling additional copies in this way sophisticated and expensive methods employed by specialist firms can be brought to bear, resulting in some excellent models. Kits are often created to fill gaps in the RTR market, a good example was a run of N Gauge BR 'Covhop' kits produced in 2007, this was a limited run but the models were rather good and a further batch may yet appear. The photo below is copyright and courtesy Paul Cheffings and shows a short rake of these hoppers built for his layout.

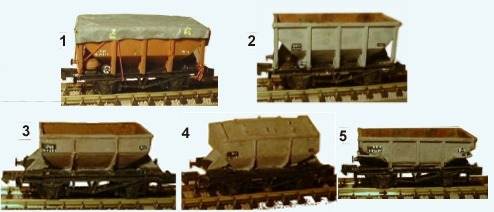

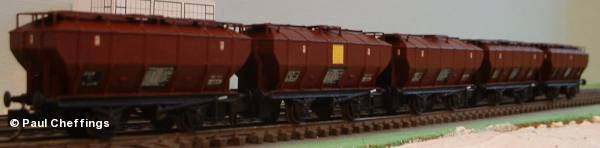

Fig___ Kit built Covhop hopper wagons
Some kits are only available to members of the
N Gauge Society and 2mm Scale Association, some of these kits have been
sponsored by the organisations themselves, others are produced by members for
sale to other members. Details of kits available to N Gauge Society and 2mm
Scale Association members will be found at the end of this section. Membership
of both of these organisations is strongly recommended.
There are two problems with kits, assembly and livery. Assembly is
largely a matter of practice and a little care but liveries have always been
something of a problem. The extensive Woodhead (pressfix) and Fox (waterslide)
transfers appeared in the 1980's and transformed the situation. The Woodhead
range is now sadly discontinued however members of the N Gauge Society have a
new range of transfers supplied by Modelmaster.
Kits are available in a range of materials. Injection moulded plastic,
like the old Airfix kits, is expensive to produce but these kits are probably
the easiest for the beginner. Personally when building plastic kits I much prefer the liquid glues applied
with a paintbrush to the tube type.
Cast white metal is generally the preserve of the commercial producers
although some home based businesses use this material. Cast metal kits can be
assembled with solder or a glue such as Uhu or super-glue. I often use Araldite
Rapid for vans and the like as it is 'tacky' enough to hold the parts together
while I make small adjustments but it does go slightly runny as it sets so keep
an eye on the job for about fifteen minutes to make sure it doesn't collapse
into a heap. Whitemetal kits can comprise a set of parts or just a simple
single piece moulding such as the P.D. Marsh one plank wagon body, this has the
coupling retainer plugs to suit the recommended Peco chassis moulded in place.
Cast resin is quite fragile but it is popular with individuals producing
a small range of kits as it is comparatively cheap to make. Kits can again be
either a single moulding or they may come as a set of parts in which case I
would suggest Uhu Glue as the best adhesive.
Finally there is etched brass, which produces excellent results but
which does take a little practice and a lot of care in assembly. Solder is the
best 'glue' for brass, it takes a little getting used to for those who have
graduated from Airfix type kits but the result is a very strong model. One
additional benefit is that the solder can be re-heated to dismantle the parts
if you get things wrong the first time. You can use Superglue for etched kits
but you are then literally stuck if you put it together out of true. Brass kits
are usually supplied as a one piece fold-up box for the basic body shape with
additional etched overlays to provide the relief detail. Most models have
additional detail such as hinges, plates and bolt heads half-etched onto the
surface.
Quite a number of the available kits are for the body only, the modeller
is expected to fit the kit to a proprietary chassis (Peco, Graham Farish or
Parkside Dundas) or to add a chassis from one of the etched brass chassis kits
available to members of the two main clubs. There are two problems when using
the Peco chassis kits, the chassis is designed to be used with bodies which
have a recess in the base to take the Peco weight and either plugs to hold the
couplings in place or space for the plugs supplied with the Peco kit. Some kits
are designed with coupling retainers moulded in and others have a small clear
space under the body for the Peco retainers. The problem comes with body parts
which have a flat base but others have a flat bottom which has to go flush onto
the chassis floor.
The Peco Else coupler in the chassis kits is secured in place with a
separate plug which stands proud of the chassis. This plug is larger to one
side than the other (ie the pin underneath is off-set slightly), they can be
inserted so most of the top is near the end of the wagon or with the bulk
toward the centre of the wagon. This can be relevant if you are cutting the
chassis about, such as when making a dropped-centre machinery wagon.
Stuart Brasier of the N Gauge Society discovered that the old type Peco
track sleeper is just the right size to make a replacement coupling retainer
pin. Cut a 4.5mm length of sleeper from Peco track and insert them on top of
the coupling with their top side facing downward. The floor of the kit then
serves to hold them in place although Stewart actually glued the sleeper
cutting to the base of the body being mounted.
When fitting old Lima wagon and van bodies onto Peco chassis I usually
cheat and just cut holes in the floor to clear the retaining plugs, in which
case it is important that the plugs are inserted so they lie toward the centre
of the chassis rather than toward the ends. In open wagons I fill in the space
around the plug with a little filler eased into place with a wet finger.
The centre of the Peco chassis also has a small raised moulding pip and
it is often essential to sand the top smooth before trying to fit your body to
it.
Plastic Kits
Peco
Peco offer several of their RTR models as unpainted kits and several of
these serve as the basis for simple modifications. The ten foot wheelbase
refrigerator van kit can be used to make up a variety of wagons, both opens and
van types. If you scrape off the lower door detail and make up strapping to
match the doors on the Graham Farish NE bogie van and add vertical posts at the
ends you get something which resembles a standard LNER van, although I believe
the van in question may have had vertically planked ends. They also sell their
ten foot and fifteen foot chassis, which are simple one piece mouldings
allowing even a beginner to build a model that rolls well.
One vehicle which has only been produced in kit form is a Southern
Railway brake van supplied with the standard fifteen foot wheelbase chassis.
This kit has separate side duckets and sand boxes, allowing variants to be
produced, the SR design dates from the 1920's. This kit can be modified in various ways, I have a cut-down version as an internal user van for a colliery (shown right) and I used the spare end attached to a refrigerator van body to make a 'road van' for a light railway (shown left). Both of these use the 4mm length of Peco sleeper as the coupling retainer, the extended ends from the original kit were used to make a lowmac type vehicle for the same light railway model.

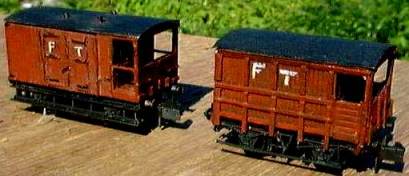

Fig___ Brake Vans produced using the Peco kit
More recently Peco have produced a nine foot wheelbase chassis in kit
form, and they have now released kits based on this chassis; a BR standard
sixteen ton mineral wagon, a door-less ore tippler wagon and the half-height
'sand' version and a seven plank end-door wagon.

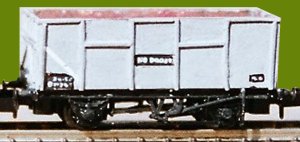

The steel bodied sixteen tonner end-door wagons were the single most common type on
BR up to the late 1960's, the last of the unfitted vehicles disappeared from
the revenue earning fleet in the early 1970's, a few of the vacuum fitted
examples (never very common) soldiered on into the early 1980's.
The twenty seven ton tippler wagons are simply door-less versions of the
mineral wagon. These were introduced in 1951 for iron ore but used for a wide
range of cargo including stone, chalk and sand.
Vacuum brake equipped versions of both these wagons often had a tie bar
between the axle boxes, this is not part of the kit but is easy to add. Empty vacuum fitted sixteen tonners were often used as barrier wagons on Class A oil tank trains in the days of steam, typically two or three being at the engine end and one at the guards van end of the rake.
These models have a frame on the base of the floor to allow accurate
alignment of the solebars and headstocks so even a complete beginner has a
better than even chance of getting the thing to roll well. The kits also
include a new variation on the standard Peco coupler with a separate retaining
cup to be glued to the chassis.
Parkwood Models
31 Elmwood Close, Retford, Notts, DN22 6SL
Payment by cash, cheque or postal order payable to Parkwood Models.
This firm offers a range of simple to assemble but rather good kits of
goods stock seen in the early BR era, several of which are of
pre-nationalisation prototypes. The van models come complete with a moulded
roof. They also offer three models of early, centre-cab, Type 1 diesel
locomotives as single piece cast-resin mouldings to fit the Graham Farish Class
20 chassis.
Pre nationalisation stock includes the LNER steel bodied open wagon
built in 1937 for their all-fitted 'Green Arrow' goods service (some of which
were later used for sand traffic by BR). The LMS is represented by a 1933 steel
ended five plank open and a 1948 three plank open wagon. The LSWR/SR/BR eight
plank open wagon appeared in the 1920's on the then standard nine foot
wheelbase chassis and more were built in the 1930's using a ten foot wheelbase
chassis. The GWR had some eight plank wagons of a generally similar type
although there were variations in the strapping on the upper side cupboard
doors. The GWR/BR wooden bodied china clay wagon has now been added to the
range, designed to fit the Peco nine foot wheelbase chassis. Further details on
the history of these china clay wagons and notes on making a model based on the
Peco five plank open will be found in the section on Kit Bashing.
The remaining open wagons in the range are a pair of single bolsters, a
twin-pack containing a Coil J body and a sand tippler body (both to suit the
Peco nine foot wheelbase chassis) and finally a BR 1951 steel bodied medium
open wagon (similar in size to a three plank wagon) which comes in a twin pack
with an early BR pallet van with offset double doors.
Early BR standard vans are available as a twin pack containing one each
with planked and plywood sides, this pack also includes alternative ends to
make the insulated and multi-vented meat vans (this was a good idea). The final
kit is for the BR 'vanwide', the last of the ten foot wheelbase standard BR
vans introduced in 1962. Some of these remain in revenue service in the late
1990's reserved for carrying Ministry of Defence traffic.

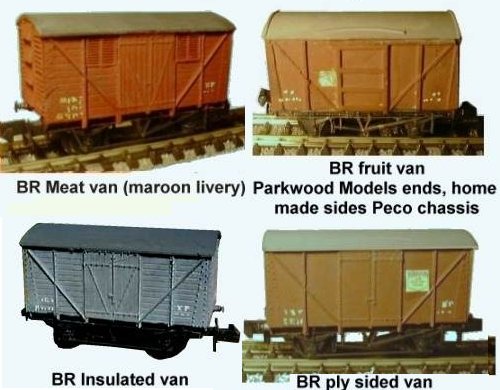

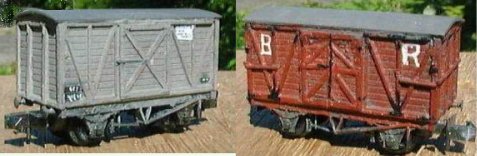

Vans produced using the Parkwood kits
Foxhunter Models
10 Glebe Lane, Buckden, Huntingdon, Cambridgeshire PE18 9TG
This firm offers only a single goods wagon kit at present as they are concentrating on their range of locomotive kits. The goods wagon is a BR standard twelve ton ventilated van with corrugated metal ends to fit the Peco ten foot wheelbase chassis.
Taylor Plastic Models
Unit 4/1, Enterprise Centre, Wardwell Lane, Newington, Sittingbourne
Kent. ME9 7BS
Taylor Plastic Models began with a range of simple inserts for Graham
Farish Mk. 1 coaches and moved into the injection moulded kit field starting
with a modern BR HBA hopper as a simple kit to fit a Peco 15' chassis. The HBA
was built to supply domestic coal dumps, no automatic discharge gear being
fitted. They are air braked and originally they had a through pipe for working
with older vacuum braked stock. Originally designed for operation at up to 45
mph (the standard for the old vacuum braked wagon load services) they were
re-sprung in from late 1981 to carry 25 tons at 60 mph and re-coded as HEA.
Some carry a `St Andrews Cross' (a blue rectangle with a white X, about a foot
square or in the form of an oblong flag about eighteen inches long by ten
inches high) on the side to indicate that are to be returned to Scottish
destinations. Following the reduction in coal traffic after the 1984 miners
strike some have been further modified to carry minerals and `fragmented scrap
metal' (these latter being coded HSA).
Mr Taylor offers a series of kits to fit the chassis for the early air
braked designs (20'9'' wheel base) this having been produced in conjunction
with Graham Farish in an eminently sensible liaison between the two
manufacturers. To suit this chassis Mr. Taylor is providing kit bodies for the
VCA van, ZRA engineers van (coded `Bream'), the SAA/KTA/RRA Steel
Bolster/Coil/Runner, the SHA/RRA Steel Coil/Runner and the FPA Conflat P with
'Russel' coal/salt container. He also offers an insert which allows the open
frame of an empty container wagon chassis to be built using a butchered Grafar
chassis.
Mr Taylor has arranged for the kit parts to be produced in a range of
colours to suit various periods, but it is recommended that at the very least a
coat of matt varnish is applied before the application of transfers as these do
not generally stick so well to plastic.
Parkside Dundas
This firm offer a 12 foot wheelbase injection moulded BR chassis
originally produced to an order by the N Gauge Society who sell it as part of a
GWR van kit. The original kit was difficult to assemble and Parkside have now
re-tooled the kit and produced something much easier for the average modleller
to put together. Parkside Dundas have an arrangement with Romford for the
production of replacement wheelsets including spoked, three hole and disc
types. These are all black, metal tyred and cut to the same profile as the Kato
(a Japanese manufacturer) wheelsets, considered to be about the best available.
They are supplied on metal axles which are a direct replacement for Peco
wheels, but can be used with Graham Farish chassis with a spot of running in
and they may also fit other manufacturers stock, although I have no definite
information on this.
To go with the chassis Parkside Dundas have released a series of kits of
pre-grouping and BR vehicles. The range includes a 1924 GWR 20 ton mineral
wagon of a type leased to private owners, a 1930's LNER loco coal wagon and a
1936 LMS loco coal wagon. In the 1960's, with the demise of steam on BR the
remaining loco coal wagons passed into the revenue earning fleet before being
scrapped.
The remaining pre-BR kits are a 1928 SR sleeper wagon, which was still
in service in the late 1980's and the LNER/BR pipe wagon (a design dating from
the 1930's and retained into the 1990's for departmental use). Fifty of the
pipe wagons have been retained for supplying Ministry of Defence establishments
where tight curves preclude the use of longer more modern vehicles.
They also offer the BR 24.5 ton mineral wagon (the BR 21 ton wagon body
kit from Mr. Paul Hodgson may also be used with the Parkside Dundas chassis), and a
BR `Grampus ' ballast wagon. This latter was introduced in 1951 but is based on
a GWR design dating from the turn of the century, the GWR version had plain
metal ends with two stanchions, easily produced from plasticard and microstrip.

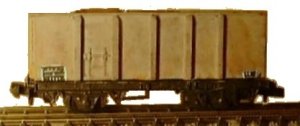

The model shown is the 24.5 ton mineral with home made sides to represent one with no side doors fitted.
For the future they had planned a range of 10 kits on a new 9 foot wheel
base chassis, however this idea may have been shelved.
The plan called for an initial release of four GWR models; 7 plank open
(02), 10 ton goods van (V4), loco coal wagon (N13) and ballast wagon (P14).
White metal Kits
W&T
This company were one of the supporters on N gauge in the early days
offering a small number of kits under their own name including a neat `petrol
tank' body kit, representing a standard RCH tank. This model was a smooth-sided
(i.e. `lagged') tank made up from a length of tube with cast whitemetal ends.
It was a handy basis for converting to a 6 wheel milk tank (it has a separate
filling dome and so can be used to represent the milk tankers with off-set
filling domes) as well as being a cheaper alternative to the Minitrix tank body
for modelling other lagged types.
W&T also produced a rectangular tar/chemical/oil tank similar to
that produced by Graham Farish, and a neat twin cylinder tank wagon. This kit can
represent an oil tank wagon type, used for small parcels of oil of different
grades such as vegetable or fish oils. These may also have been used for the
products of industries such as gas works or wood distillation plants. I have
included liveries for railway gas tanks in Fig ___ and a vegetable oil tanker
in Fig ___. There was
a similar wagon to this on Peter Denny's famous 4 mm Buckingham Great Central
layout which was used to supply gas for carriage lighting. The kit as supplied closely resembles a GWR gas tank wagon, simply omit the filler domes, add some pipes at one end of the tank and mount on a wooden chassis. Mine has been trundling about on various layouts for many years, working from a black and white photo I got the colour wrong (it should be black all over with white markings) and it should have a two digit number, but it has given several people pleasure over the years.

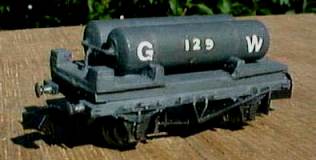

Fig___ Gas Tank Wagon
All W&T wagon kits are designed to fit on standard Peco chassis
kits, the petrol and twin `gas' tanks use plastic tubing with cast whitemetal
ends for the tanks and a whitemetal sub-frame. The twin `gas' tanks kit can also be used for an LMS type, mounted on a Parkside Dundas 12' wheelbase chassis with a platform at one end and a handrail (a square inverted U) at both ends.
Also in the range were a set of 1930's-50's motor vehicles, a pair of
Fowler steam ploughing engines with their associated plough and some horse
drawn road vehicles. All of these make useful wagon loads as well as service as
scenic dressing on the layout.
The range of kits from Fleetline Road n Rail, Skytrex N and GEM ranges are now owned by Lytchett Manor Models
The molds that are still producing quality models will be used to reintroduce models from those ranges in due course.
Fleetline used to offer a very wide range of whitemetal road vehicles, girder and plate bridges, water cranes/tanks and accessories as well as their range of freight stock models. Their `Vitroil' (sulphuric acid) 10 ton de-mountable tank, suitable for early BR and possibly Big Four eras (fits a Peco 10 foot steel chassis) was one of the first N gauge models I tried. The rather crudely assembled example shown has been running about unlettered and on the wrong chassis for nearly thirty years now, one of those jobs I really must get round to.

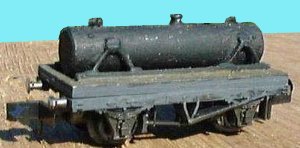

Mike's very old Vitroil tank (not yet lettered)
The currently available models will appear on the website at some point but for the moment if you send them an SAE they will send you a list.
Graham Hughes
20, MacKelvie Road, Lamlash, Isle of Arran Strathclyde KA27 8NP
Payment by cheque or postal order payable to Graham Hughes.
Mr. Hughes offers a range of pre-grouping cast metal kits, these kits
have the solebars and running gear and require wheels and couplings to
complete. The range currently comprises a GCR six wheeled brake van and ten ton
cattle wagon (handy this as there are no ready-to-run LNER type cattle wagons
on the market), a pair of LNWR timber bolster wagons, an MR 3 plank 8 ton, 5
plank open and manure wagons, a GNSR 3 plank 8 ton open, GNR twenty ton loco
coal and nine ton four plank open wagons, a GER seven plank open wagon and
finally an LSWR five plank open, ten ton box van, ten ton cattle van and twenty
or twenty four ton brake van.

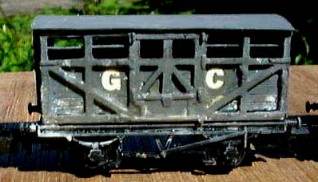

Fig ___ Great Central Cattle Truck
One sometimes sees pictures of pre-grouping cattle wagons with white interiors and white stains on their sides caused by `lime washing' the insides of the wagons as a way of disinfecting them. The interior of these wagons should be all white and the liquid leaked out between the planks as well as through the built-in openings. There would be patches of white all over the body but mainly where there were gaps such as the openings at the bottom and around the open upper sides. This practice was banned in the 1920's, so the stains should not appear on Big Four or British Railways stock.
Some care is required in assembling these kits as the chassis is integral with the sides, so alignment is important. The cattle truck shown was my first attempt at a white metal kit and I made a mess of the chassis so I fitted the body to a spare Minitrix chassis from my bits box. Many of these kits can be fettled onto a Peco 10 foot or nine foot wheelbase chassis, which may be of interest to the less experienced modeller and the provision of unusual prototypes is welcome.
P.D. Marsh
This firm offers a range of whitemetal kits, including an LMS goods
brake van to fit a Peco 15 foot wheel base chassis, a GWR Mink C van to fit a
cut down Peco 15 foot chassis (the new 12 foot wheelbase chassis from Parkside
Dundas might fit, I have not tried this however) and an SR goods utility van or
GUV which runs on a lengthened Peco fifteen foot chassis. The model shown was assembled by my god son with no problems and runs well on its cut-down Peco chassis.

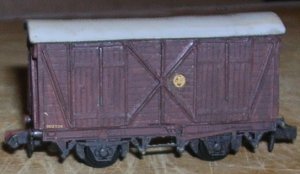

Fig ___ Mink C Van
The Mink van serves as a good basis for a Bloater fish van, although you
should cut away the swinging link suspension gear, add brake gear and add steps under the doors for both the Fish and Mink versions.
The GUV was used for general parcels traffic mainly attached to
passenger trains, the design dates from 1937 and saw service at least into the
1970's. The GUV is supplied with optional end doors for use as a CCT and
is designed to fit on a lengthened Peco 15 foot chassis, using a simple metal
insert to extend the chassis.
They also produce a range of models designed to fit the Peco 10 foot
chassis; a single plank wagon, which is available with a single `fixed' bolster
(such vehicles did exist, they were phased out by the 1970's however) and a
useful 7 plank end door wagon body. For van enthusiasts they offer a planked
and plywood bodied versions of the SR van as offered by Graham Farish but
supplied with an aluminium extruded roof which more closely matches the
distinctive compound curves.
The GWR 12 ton van is unfortunately identical with that offered by Peco
(although this does mean that the production of a `Mogo' car carrying van is a
little easier as the ends need not be cut away but simply omitted) and a neat
GWR shunters truck which comes with the distinctive tool box.
The shunters truck is over long as it is designed to fit directly onto
the Peco 10 foot brake van chassis, the prototype used a 7 foot wheelbase
chassis. This can be produced by cutting down the body and box, mounting on a
cut down Peco kit, but personally I used a cut-down Peco single bolster body on
a cut-down 10 foot brake van chassis with a carved block of Milliput for the
tool box and scraps of plastic for details.
Fig___ GWR Shunters Truck
The model has been fitted with Farish wheels, which required the chassis to be eased open slightly to obtain smooth running. Underneath there are phosphor bronze wipers bearing on the wheels as this model was made to run with and provide additional pickups for a GWR 'dock tank' engine on the very short wheelbase Minitrix 0-6-0 chassis. It has been leant out to various people over the last twenty odd years and has never failed to perform as intended although the loco body (a rather good white metal kit) has failed to survive.
Cast resin kits
Since Nthusiast Resprays has discontinued production the only resin kits I know of are produced by members of the 2mm Scale
Association and the N Gauge Society for sale to members only.
Having said which the membership fees are worth it if only for the Journals, which often contain really useful information on the prototype as well as articles on modelling. Some of the resin kits are really very good these days, the 2mm Scale Association has a few worth considering, for example the body for a GWR Mink A van 16' with non-vent cross strapped ends which could run on a Peco 9 foot wheelbase chassis (or you can use the 2mm Scale Association etched chassis kit with N Gauge wheelsets). They also offer a very nice preswtin hopper, this is lot better than the Lima models even when the latter have been extensively modified. They also offer a Presflo kit, although in N we have the Graham Farish model for those.
Etched Brass kits
Etched Pixels
Etched Pixels, 106 Heol Walter, Abertawe, SA1 5QQ
Etched Pixels website
Etched Pixels is a new (to me in 2008) company run by Alan Cox (who kindly re-wrote large chunks of the Diesels section of this website) producing digitaly mastered brass etched kits. As they realise that N Gauge is somewhat 'fiddly' they design their kits to assemble easily using a fold-up body with overlays designed to be glued rather than soldered in place (although soldering remains an option). Their range covers modern image and pre-BR rolling stock, detailing parts and accessories. Their freight wagons models do not include bogies/buffer but do include instructions, the current range includes:
BAA steel carrier (requires TPM Gloucester bogies, or more accurate roco ones)
Fig___ Unpainted BAA steel carrier
GWR bogie mink (Mink F) (requires N Gauge Society plateback bogies)
LNER quad (I found out about ABS beaver kit after releasing it)
(requires microtrains bogies)
Barry Railway six wheel mineral brake ( requires peco 10' brake van chassis with
extra axle from second similar chassis)
Barry Railway ten ton cover goods van (requires Peco 9' steel chassis)
Barry Railway ten ton stores van (requires Peco 9' wooden chassis)
Barry Railway 10 ton goods/ballast opens (requires Peco 9' steel/wood chassis
according to diagram)
In the accessories range he also produces a detailing kit for the Mill Lane Sidings ferry van, comprising an etched door frame, securing points, vents, and sundry detail for the BR ferry van kit. One splendidly odd item is a set of small etches which, painted and fitted together, form a N gauge scale model of a 6'x4' OO gauge model railway, including legs. Alan comments that this kit has 'Very fiddly parts'.
BH Enterprises
68 Meadow Road, Kingswood, Garston, Hertfordshire, WD25 0JA Tel 01923 672809
Fax 01923 670937
BH Enterpises website
This firm has been established for several years now and although I have not (yet) built any of their kits from what I have heard they are pretty good kits. They now handle the John Grey range of kits (listed separately below) and their own range currently includes -
W1 LNER Fish Van
W2 LNER Perishables Van
W3 NE Birdcage Brake Van
W4 LNER (ex GN) Brake Van
W5 LNER Fruit Van
W6 Russel Coal Container
W7 POA Lime Tippler
W8 Etched sides to convert Farish VBA to VCA
W9 Etched sides to convert Minitrix Shocvan to VEA
W10 SR Banana Van
W11 LNER Banana Van
W12 LNER Refrigerator Van
W13 LMS Fish or Meat Van
W14 China Clay Hoods (for Minitrix Hopper)
W15 PNA/POA Scrap or Agregate Hopper Resin Body Peco Chassis
W16 20TON SR Brake Van 6inch Planking L H Ducket (Etched Body)
W16CH 20TON SR Brake Van 6inch Planking L H Ducket (Etched Body) with chassis
W17 20TON SR Brake Van 6inch Planking R H Ducket (Etched Body)
W17CH 20TON SR Brake Van 6inch Planking R H Ducket (Etched Body) with chassis
W18 20TON SR Brake Van Alternate 3 +6inch Planking R H Ducket (Etched Body)
W18CH 20TON SR Brake Van Alternate 3 +6inch Planking R H Ducket (Etched Body) with chassis
They also offer a number of modern containers suitable for freightliner wagons, small lorries or yard scenes) including 20' box and tank (liquid and gas types) containers, 40' box containers, 20' gypsum container (in stone cast), 20' coal containers (with or without the associated chassis). To go with the tank containers they offer a range of pre-printed overlays.
John Grey
This range is now in the capable hands of BH Enterprises detailed above
Mr. Grey has produced a series of BR period kits in etched metal,
basically these consist of relatively simple fold-up bodies with additional
etched overlays. This means they are detailed inside and out and the standard
of detail is excellent. The four wheeled stock is designed to fit on Peco nine,
ten and fifteen foot wheelbase chassis, the Parkside Dundas twelve foot
wheelbase chassis or the Graham Farish/Taylor Plastic Models twenty foot nine
inch wheelbase modern chassis.
The bogie stock makes use of Taylor Plastic Models Y25C bogies and Atlas
Bettendorf bogies, both of which are available from Mr. Grey. Other bogies can
be used for some models, the Graham Farish diamond frame type is readily
available and the Kadee arch bar bogie has to be obtained from a specialist
importer. The Borail kit includes overlays to represent plate frame type bogies
which can be attached to standard commercial bogies.
The range includes several late grouping and early BR models which suit
the Peco ten and nine foot chassis including a 16 ton mineral and 27 ton sand
tippler, similar to those offered by Peco on their new nine foot wheelbase
chassis. The advantage of Mr. Grey's kit of the sixteen tonner is that you have
the option of omitting the small drop down doors above the side doors. Those
with the small drop-flap doors above the main side door were built from 1950,
later re-bodies built from 1970 had no drop flap above the side doors.
Mr. Grey also offers a BR steel shock absorbing open wagon, a BR steel
vacuum braked `Medfit' (equivalent to a three plank wooden wagon) and an LNER
steel bodied high sided wagon (equivalent to a 5 plank open) with vacuum brake
and a tarpaulin rail. Some of these latter were modified with locking bars
across the doors for sand traffic.
To suit the Parkside Dundas chassis he offers the BR SOV/ODA pipe wagon.
He also produces the more recent BR bogie steel carriers BDA, BDV and
BDO, the BBA fifty foot steel carrier and the BEV bogie bolster E. According to
a review in the N Gauge Journal the 52 foot BDO, or Bogie Bolster D, is in fact
a BR built LMS design. The BEV represents a 32 foot BR type introduced from
early 1961 as a replacement for the double bolster (as supplied by Peco) and
pre-war bogie stock. These were the shortest BR bogie steel wagons and most
have been converted to steel strip or coil wagons. I believe these were all
fitted with vacuum brakes. Some BEVs were transferred to the engineers
department in the 1980's where they are used for ballast/spoil wagons and
renamed 'TURBOT'.
Mr. Grey's range includes and etched metal HAA MGR hopper, although most
etched hopper wagons require a little care in assembly and may not be suitable
for beginners.
Other railway company owned traffic models in the range include the OBA
open wagon, OHV steel sided open wagon, OTA timber wagon, SPA plate wagon, STV
tube wagon, JHA/JGA bogie hopper wagons and the VGA van.
Private owner vehicles include the distinctive bogie fertiliser van
coded PWA and the curtain sided van PVB as used by Campbels soups, Mr. Grey
offers transfers for both of these. Offered without transfers is the POA 73 ton
payload bogie open dating from 1975 and used for scrap or aggregates, you need
to obtain bogies as well (American Bettendorf or Graham Farish tank wagon
bogies would do). The standard PGA fifty ton hopper completes the current PO
types on offer.
The ferry-equipped Trestrol EO, TOPS coded XTP is an interesting model
and there are several departmental vehicles; YDA `Dolphin' track carrying
wagon, YCV 'Turbot' bogie open (see BEV above), YLA/BPV Borail, YLO (ex GWR
Gane) bogie track carrier, YMO 'Salmon' bogie flat wagon and ZFV 'dogfish'
ballast hopper. The 13 ton medium goods wagon serves well in engineers fleets
where it was coded ZAV.
The OBA four wheeled open wagon has the prototypical gap at the bottom
edge of the sides and the steel carrier shows the corrugated floor designed to
ease loading and also dissipate heat.
The latest release is the Eurospine lorry carrier which entered service
at the beginning of 1997. These kits are very reasonably priced and well
produced, although the instructions supplied with early releases were a little
basic. Providing one has a clear idea of the finished result in mind they can
be assembled in a single evenings work, given a little practice.
Fence Houses Model Foundry
49 Graythwaite, Chester-le-street, Durham, DH2 2UH Tel 0191 3874756
Mr Jones produces a range of compkete kits, mostly to 2mm
scale, but a couple are to 1:148 British N.
The freight kits cover:
LNER
and BR 21T hoppers,
BR 13T hoppers,
LNER bogie flat wagon,
LNER bogie
van,
Glass transporter wagon.
I am informed by someone who should know that 'You don't get better etches than
Fencehouses in any scale (because Bob Jones also designs the very
best 7mm etched loco for Waterman's 'Just Like the Real Thing' ranges)'.
Ian Stoate Models
20 Orchard Close, Frome, Somerset, B11 4EA
Mr stoate produces a range of models in British N, the freight wagon part of his range includes -
101 PTA/JUA Yeoman / ARC / Ore Tippler,
102 PHA/JYA O & K Yeoman Box Wagon (discontinued I believe), 103 PXA/JXA Aggregate / Scrap Wagon,
104 BAA Steel Carrier, 105 BBA Steel Carrier, 107E JHA Yeoman 102t Bogie Hopper (Pair of Hoppers with standard N-Gauge couplers and buffers on outer), 107I JHA Yeoman 102t Bogie Hopper (Intermediate Hoppers - fitted with Buckeye couplers), 108 PHV/JHV I.C.I Limestone Hopper Wagon, 109 PFB M.O.D 'WARFLAT', 110 PFA 'BINLINER' Container Wagon
, 111 BLA Steel Coil Carrier, 112 PCA/JCA Twin Cement Tank Wagon, 115 KIA/KIB Sliding Hood Steel Coil Carrier,
116 IHA/BGA Canvas Hood Steel Carrier, 150 POA Scrap wagon. Standard Wagon, 151 VGA 'Speedlink' 46ton Van
152 SSA(POA) Scrap Wagon. 'Blackadder', 153 POA Scrap wagon, 154 OCA Open Wagon, 159 USV 13ton Sand Wagon,
250 MTV/ZKV 'ZANDER' Ballast Wagon, 251 ZJV 'MERMAID' Ballast Tipper Wagon, 252 ZCV 'CLAM' Spoil Wagon,
253 ZCA 'SEA URCHIN' (DC200xxx series), 254 ZCA 'SEA URCHIN' (T100xxx series), 255 ZCA 'SEA URCHIN' (DC460xxx series), 256 MSV/ZGV 'BARBEL' 27t Ore/Spoil Wagon, 257 ZCV 'TOPE' Ballast Hopper Wagon, 259 PNA Railtrack Ballast Wagon, 260 PNA Railtrack Ballast Wagon, 261 MTA EWS Ballast/Spoil Wagon,
Kestrel Brass
Bill Bedford Models
4 Belgrave Court, George St, Pontypool, NP4 8NP, UK.
Mr Bedford advises that delivery times will typically be in the order of
12 weeks as he produced the etches to order and holds only a relatively small
stock in hand. He therefore prefers payment by Visa or Access, which will be
debited when he sends you the kit. Mr Bedford offers a printed list of all
currently available models for 50p. An up to date list of available kits is
available on the internet (free) at Mousa Models
Mr Bedford offers a custom etching service and sells further examples of
the etches commercially. He uses an eight thou sheet, somewhat thinner than
most kits, but the quality of the items is very good. The range is extensive,
mainly dealing with passenger coaches but also including some interesting goods
stock and several locomotives. These are however not exactly full kits, they
were mainly intended for 2mm Scale Association members and many of the etches
are simply the difficult bits to be added to a home made body and chassis. No cast parts are supplied, no
instruction sheets are included and you need to track down the prototype
information and livery details yourself. The kits I have seen have no locating
lugs or securing tabs, so assembly requires a little care, but as I say the
range offers some interesting models. It is probably easiest to list the
models, as in his catalogue, by railway company.
Great Central Railway/LNER: D.13 ten ton van with cupboard doors, D14
van with sliding doors, the D.16 outside framed van, a ten ton fish van and a
six wheeled brake van.
North Eastern Railway/LNER: Outside framed brake van and horizontal
planked brake van.
North British Railway/LNER: Cask wagon, this is an open framework body
only.
London & North Eastern Railway: D.5 horsebox, D.23 ten ton fish van
and D.37 ten ton fish van.
London & South Western Railway/SR: D.1409 ten ton van, ten ton brake
van and eighteen ton brake van.
Midland & South Western Junction Railway/GWR: Van number 303
Welsh Highland Railway/GWR: Slate wagon
North Staffordshire Railway/LMS: twenty ton brake van
Highland Railway/LMS: Three brake vans
London & North Western Railway/LMS: Standard hut.
Worseley Works
(Worseley Works website)
To confirm address
Worseley Works, run by Alan Doherty (Worseley Works), offer a vast
number of things as etches. He calls most of them "scratch aids",
they are no worse than many a Bill Bedford etch in having
limited/no instructions and no cast parts.
There are also a number of individuals offering small ranges of kits
suitable for the 2mm/N modeller however these tend to be short production runs. Most cater to the 2mm Scale side rather than British N, notable examples being David Eveleigh and Chris Higgs (Masterclass models). They make superb kits, rivalling Bob Jones' Fencehouses kits. However, they are sufficiently niche to be of interest
mostly to 2mm finescalers.
Hybrid Kits
Some kits use a selection of materials, mainly plastic and metal, to achieve the desired result. Some firms have prodiced kits in a range of materials, such as whitemetal locos and etched brass wagon kits.
Mill Lane Sidings
http://www.mill-lane-sidings.co.uk/index.html
This company now has a number of kits on the market, these use a range of materials including laser cut wood, resin, etched metal and plastic parts. Their first offering was the LMS Palethorpes Sausage Van from 1936. One notable addition to their range is the BR long wheelbase Ferry Van , the van kit is a card and paper model (which comes out rather well) running on a modified Peco 15' wheelbase chassis (although this will restrict the minimum radius curve the model can handle). Their GWR three-bladed aeroplane propellor wagon kit uses laser-etrched plywood and requires a Peco 10' wheelbase steel chassis to complete. They also offer a plastic kit of a BR era 'shock open', complete with sheet rail and corrugated steel ends. This comes with parts required to modify a Peco chassis, including the vacuum brake cylinder.
Ultima Models
The Ultima range of coach kits and parts is currently mothballed however I understand the former owner, Colin Albright, has now wold the masters and the range should reappear soon. The range includes several items which may be of interest in the context of freight, notably their range of roof ventilators and brass buffers. The range of coaches includes several vehicles suitable for goods working such as an LMS 42 foot luggage van/CCT, LMS, LNER and GWR full brake coaches and two types of LMS TPO (Post Office) vans.
ATMWagons - This company seem to have stopped production, which is a pity as they made some useful modern rolling stock kits
CJM Models
Address:- CJM Studio, 54 Marine Parade, Tankerton, Whitstable, Kent CT5 2BD
Telephone:- 01227 262431 Fax:- 01227 262431
CJM Models Website
This firm produces a range of modern image locomotives and coaching stock, they are included here as they may be re-releasing the ATM Wagons WIA car carrier.
ABS/Beaver (now Beaver Products)
Now available from:
KeyKits, 36 Field Barn Drive, Weymouth, Dorset, DT4 0ED
(KeyKits website)
This company used to sell via W&H in London and after that firm went I was not sure where to contact them, however Alan Cox has pointed out their range is now available from KeyKits. This form were early contributors to the N Gauge market with a rather nice model of the LNER Quad bolster wagon, I gather this is still available but I had problems accessing the website to confirm the details. If it is as the original it requires the etched metal bogies making up, which may put some people off, but it was a very nice model.
Currently lists kits are:
BR Class 04 Drewry Diesel shunting loco (fit to MINITRIX 0-6-0T LMS Dock Tank chassis)
BR Class 03 Standard Diesel shunting loco (fit to MINITRIX 0-6-0T LMS dock Tank chassis)
GWR "1366" 0-6-0 Pannier Tank (fit to MINITRIX LMS 0-6-0T chassis)
GWR "56XX" 0-6-2 Side Tank (fit to GRAFAR 0-6-0PT chassis)
LNER "J52" 0-6-0 Saddle Tank (fit to GRAFAR 0-6-0PT chassis)
LNER "J63" 0-6-0 Tank Loco (fit to MINITRIX LMS 0-6-0T chassis)
LMS ex HR 0-6-4 Tank (fit to GRAFAR 0-6-0PT chassis)
LMS "Flatiron" ex MR 0-6-4 Tank (fit to GRAFAR 0-6-0PT chassis)
Kits available through modelling clubs
The 2mm Scale Association and more recently the N Gauge
Society have both commissioned plastic and etched brass kits which are only
available to members. Both organisations also offer kits from commercial
suppliers and small ranges produced by members through their respective shops. Membership of both organisations is highly recommended as there is a lot of cross-over in techniques.
The 2mm Scale Association range is ever changing and expanding, to see the current selection on offer visit the 2mm Scale Association website.
These notes may be out of date by the time you read them, however I understand the Association offers plastic kits of a 7 plank end-door
mineral wagon to the RCH 1923 standard design and a GWR Iron Mink van
introduced in 1888 and still in occasional departmental use into the 1980's.
Both of these kits are designed to fit on the accurate 2mm scale etched brass
compensated chassis available from the Association, but mine have been fettled
onto Peco chassis with no problems. The original 2mm Scale Association Iron Mink plastic kit consists of sides and
ends only so you need to make the a roof from five thou plastic card. Remember
to curve the corners of the roof and add the strips across the tops where the
iron plates were bolted together as shown in the various drawings. This is a
handy kit as it can be converted into an RCH standard design gunpowder van,
introduced in the 1920's and used by all of the Big Four and by BR in the early
years. All you have to do is carve and smooth off the end vent, sand/scrape the
door planking off to leave `steel' doors and add a new door bolt. The kit comes
with the post 1927 fully planked doors, to produce the outside framed type
sand/scrape the planking away leaving only the two planks in the centre and one
at each outside end, then add horizontal framing top and bottom.

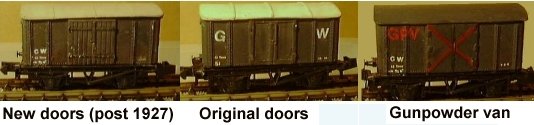

The photos show from left to right the standard kit, a model modified to represent the original door design and a gun powder van, all mounted on Peco 10 ft wheelbase chassis (should be on 9ft chassis but they were not available when the models were made).
2mm Scale Association Iron Mink on Peco chassis
Latest in the 2mm Scale Association range is a plastic kit of the BR 16
ton mineral wagon body, produced for them by Parkside Dundas. The
association and its members also produce a wide range of parts such as fold-up
chassis of various wheelbases, bogie side frames and axle boxes and they offer
models from various suppliers which are suitable for 2mm scale through their
shop. The current lits of kits includes several of the N Gauge Society kits as well as a range of handy wagons and vans, including-
BR 16T mineral wagon body kit and BR Diag 1/109 riveted standard 16-ton mineral body kit, BR 16T mineral slope sided with doors, BR/MOW 16T slope side tippler wagon, BR 21T mineral wagon body kit (I think this is the Paul Hodgshon kit)
BR 25 1/2T ironstone hopper body kit, BR standard brake van (Dia 1/506) Etched Kit, LMS vented van body kit, LMS low side ballast body kit, LMS 5-plank wagon body kit, LMS cattle wagon body kit, LMS 6-wheeled express fish van (etched body &chassis), LNWR Diag 88 box van (etched body &chassis), MR Open wagon body kit twin pack (one 5 plank, one 3 plank), NER hopper wagon body kit, GER Cattle Van, SR 20T sleeper wagon body kit, ST 12T 8 Plank Open Wagon body kit, SR Cattle Van body kit plastic (also kit ref 2-370 for chassis and roof), both the 1887 and 1907 RCH open wagon body kits (nice alternative to the 1923 RCH wagon), 1923 RCH 8 plank open body kit BR Diag 1/150 standard coke hopper (etched body), BR Diag 1/242 banana van (etched body), BR Palbrick B &C (double etched body), BR 12 Ton Open Shock Wagon - dia 1/056 - body only kit and the MR 4 wheel l Brake Van
The Association kit of the Prestwin is very nice indeed (and they do have British N Gauge wheelsets on offer for their models). Comparison with the original Lima offering (actually a Continetal prototype) shows just how much better things have become for the UK outline modeller thanks to the efforts of the Association. The Lima model (shown below left) is a Continental prototype in BR livery, the kit available to members of the 2mm Scale Association (below right, photo courtesy and copyright 2mm Scale Association) is an accurate model of the British prototype and is much more detailed.
Fig___ Lima and 2mm Scale Association Prestwin silo wagons
Jim Watt offers 2mm Association members resin kits of two rather
interesting Caledonian Railway eight ton open wagons, including the distinctive
outside-framed end-door mineral wagon which may be built with dumb or sprung
buffers. He also offers sides and outer ends for the CR thirteen ton brake van.
These kits are not suitable for N gauge as they require specialised etched
brass chassis parts only available to 2mm Scale Association members.
The N Gauge Society has since the mid 1980's built up an ever increasing and highly useful
range of kits comprising both injection moulded plastic and etched brass
models. The range is continually expanding and for the latest details you should see the N Gauge Society website. They provided the impetus for Parkside Dundas to produce a kit for a 12
foot wheelbase chassis and they sell the Parkside Dundas kits through their
society shop. The 12 foot wheelbase chassis comes with new wheelsets, which are
profiled to match the Japanese Kato range, considered to be about the best
looking N wheels available (see also the comments under Parkside Dundas).
Society kits are available to members by post from the Society Shop or from the
Society stand at exhibitions.
Kit No.1 is a plastic model of a 1955 BR twenty five and a half ton
ironstone hopper, TOPS coded `HJV', designed to fit the Peco ten foot chassis.
The vacuum braked version lasted into the early 1980's, the unfitted type (TOPS coded HJO) only
lasted into the mid 1970's. The Society sell this kit as a coal hopper, I am
not certain these wagons were used for the 'house coal concentration' system
introduced by Beeching although they may well have been, they were definitely
regularly used for sand traffic. The basic kit can be modified in a number of ways, see also
Fig___ Models made using the N Gauge Society ironstone
hopper kit
This kit can be built as the fitted version (1)
or the unfitted version (2) and can also be converted to represent an LMS
designed hopper (3), again intended for iron ore but also used for other bulk
cargo such as crushed stone. A variant of this LMS vehicle was produced with a
peaked roof for lime traffic (4). If you make either of the LMS wagons the
unused parts of the kit can be utilised to make one of the smaller types of BR
standard thirteen ton coal hopper (5). All these conversions are considered in
the section on Kit Bashing.
Kit No.2 was a GWR Mink C long wheelbase van, designed to fit the
Parkside Dundas twelve foot wheelbase chassis. This van features the older
louvered openings on the ends with sliding covers. This kit is supplied with
the Parkside chassis.
Kit No.3 is a rather neat MR/LMS/early BR standard van to fit the Peco 10 foot wheelbase chassis. Introduced in
the 1890s they remained in use into the early British Railways era and were also supplied to both the Cheshire Lines and the Somerset and Dorset. This kit can be further modified to produce a range of van types, the example shown below right was made using a second hand van model, a better result could be produced using an unmade kit as the basis.
Fig ___ MR van (BR livery) and Barry Railway van
Kit No.4 was their first etched metal kit, an SR/BR bogie forty ton
ballast hopper wagon dating from the 1930's. This kit is not really suitable
for a beginner.
Kit No.5 is the SR bogie brake van, used for high speed goods trains
running from the ports to London. These vehicles were built on redundant Bo-Bo
electric locomotive chassis in 1936 and lasted into the British Railways era.
Another detailed kit but as it has an etched brass body it is not ideal for the
beginner.
Kit No.6 was a depressed centre low machinery wagon in plastic. A
slightly unusual prototype was chosen the 1923 Rhymney Railway/GWR/BR 'Loriot
K' low machinery wagon. This was in fact a 'one off' vehicle but it did last
into BR ownership and visually similar vehicles were used by all the railway
companies from the tail end of the nineteenth century.. The wartime standard
and BR telegraphic code for these vehicles was Lowmac.
Kit No.7 is a pair of etched metal LMS goods brake vans (sold as a
single kit) to suit the Peco or Graham Farish fifteen foot wheelbase brake van
chassis. These produce nicely detailed vehicles but they are not ideal for the
beginner.
Kit No.8 is a plastic model of a long LMS/BR Bolster D, an LMS design
additional examples of which were built by British Railways in 1948.
Kit No.9 is aimed at the modern image modeller, a plastic kit with
etched brass detailing parts, of the large Polybulk wagons used for Grainflow
services in the 1980's. I believe these were originally supplied with transfers
for the sides but now come with glue-on printed overlays. The model features
correct pattern Y25c bogies with Graham Farish wheels. Very pleasing.
Kin No.10 in a GWR/BR Mica (A/B) insulated/refrigerated van to fit on a
Peco ten foot standard chassis kit. The kit can be finished as either the
insulated type or the refrigerated version complete with end ladders and roof
hatches for the ice boxes.
Kit No.11 is a modernised version of the Seacow bogie ballast hopper
(see Kit No.4) but this model features a plastic body and modern Y25c bogies. I
have not built this kit myself but I understand it is straightforward and
should not present any problems for the average modeller.
Kit No.12 is a modernised air-braked version of the Bogie Bolster D (see
Kit No.8) with Y25c bogies and coded BDA under TOPS. As with the earlier
version this kit is not difficult to build.
Kit No.13 is the GWR/BR Iron Mink van which can also serve as a
gunpowder van for any company from pre-grouping times to the 1960s. This kit
fits the Peco 9ft wheelbase chassis which requires a slight modification.
Kit No.14 is an eight plank end door mineral wagon with a Peco nine foot
wheelbase chassis. Based on an LNER prototype this serves well as a Private
Owner wagon.
Kin No.15 is a splendid large bogie well wagon coded 'Trestrol' . The
basic design dates back to pre-grouping times but this model is a type built by
the LMS in 1928. This plastic kit was produced for the Society by Parkside
Dundas and comes with optional etched brass parts to make up three trestles,
used to carry large plates.
Kit No.16 is a plastic kit with etched brass detailing parts of the
British Railways 21 ton 12 foot wheelbase hopper wagon This is a very welcome
addition to the range. Although nowhere near as difficult to assemble as the
etched brass kits of this wagon it is not perhaps the ideal 'first kit'.
Kit No.17 is a plastic and etched brass kit of the air-braked Cartic 4
Car Carrier. The model is of the original version which had handrails on the
upper deck.. As the name suggests these comprise four body units, two outer and
two inner, mounted on five bogies as an articulated unit. Even in N it is over
a foot long (roughly the same length as three passenger coaches). Introduced in
1964 these units will continue in service into the twenty first century. Not a
cheap kit and not one for an absolute beginner but very pleasing model.
Kit No.18 is a twin pack of two different types of LMS vans, one
all-wood vertically planked on a Peco 9 foot wheelbase chassis the other with
horizontally planked sides and metal ends on a Peco 10 foot wheelbase chassis.
Kit No.19 is the British Railways standard 21 ton mineral wagon. The kit
was originally produced for the 2mm Scale Association and has been modified to
suit the new Parkside Dundas chassis kit.
Kit No.20 is the British Railways 24 ton Anhydrite hopper wagon to fit
on a Peco ten foot wheelbase chassis. These were used to carry stone from a
quarry on the famous Settle & Carslile line to the ICI works at Widnes on
the Mersey estuary. They were not (as far as I am aware) used on any other
duties but they make a nice model.
Kit No.21 is a triple kit offering three different variants on the
standard Southern Railway box vans (similar to the Graham Farish twin vent van
but with a more accurate roof profile). The three variants will be equal-width
planked sides, unequal width planked sides (as seen on the Graham Farish model)
and a plywood sided van.
In the 1980s Mr R. Snelling of the N Gauge Society produced a range of kits,
mainly of pre-grouping prototypes, which were available to society members. I believe production has now ceased but second hand examples may well be found.
These kits are in cast resin and are designed to fit proprietary chassis. Models featured in the range on
display at the 1988 N Gauge Society 21st Anniversary exhibition included an LMS
bogie van requiring Graham Farish bogies and buffers to complete, GWR Siphon C
milk van to fit a Graham Farish 4 wheel coach chassis, SR/LSWR 8 ton van (shown below),
LNER/NER meat van, GWR roll wagon, GWR agricultural implement wagon, BR Iron
Ore Tippler (loaded) and a road milk tanker carrying wagon, all to fit on the Peco 10
foot wheelbase chassis.
Fig ___ LSWR/SR 8 Ton Van
Mr Snelling also produced a BR scrap metal open wagon
body, LNER mess/tool van and an LMS open carriage truck to suit the Peco 15
foot wheelbase range of chassis.
Fig ___ BR Scrap metal wagon
To suit the Mike Bryant/Precursor Models 9
foot wheel base etched brass chassis he produces an LMS/MR coke wagon, although
this can be fettled onto the Peco 9 foot wheelbase chassis if required.
The last kit (that I know of) was a one piece kit of the bogie stone tippler wagons used
by ``Yeoman'' which is designed to run on a pair of Kadee 1500 bogies, this kit
also includes the conversion parts for the wagons at the outer ends of the rake
(Kadee is an American firm who's products can be obtained in the UK through
specialist importers advertising in the railway press).
^
Go to top of page
